Ampli âm ly truyền thanh T-2P120 ITC 120w 2 kênh dùng với loa nén
Liên hệ
Được sử dụng cho hệ thống PA diện tích nhỏ
Thiết kế giá đỡ theo kiểu 1U, Thiết kế nhỏ gọn, công nghệ tinh tế, chất lượng cao cấp
Bộ khuếch đại 2 kênh trong 1
Số lượng: *
Functions
* One channel small power rack amplifier .
* Used for small area PA system .Features
*Rack mount design in 1U type, Humanized design, exquisite technology, high-grade quality .
*One channel LINE multifunction socket with TRS input or XLR balance input, XLR cascade output .
*Perfectly combination of Energy efficient switching power supply and Efficient power amplifier .
*Wide voltage power supply: 180V– 240V can work normally.
*With standby power supply 24V ; switch without delay, optional.
*Panel with the volume control knob, rear panel has a floating "earth” switch, when multiple devices connected and disconnect the switch, it would effectively eliminate the earth line loop noise which caused by multiple devices signal earth line connection.
* With Short circuit, overload, overheat automatic protection function .

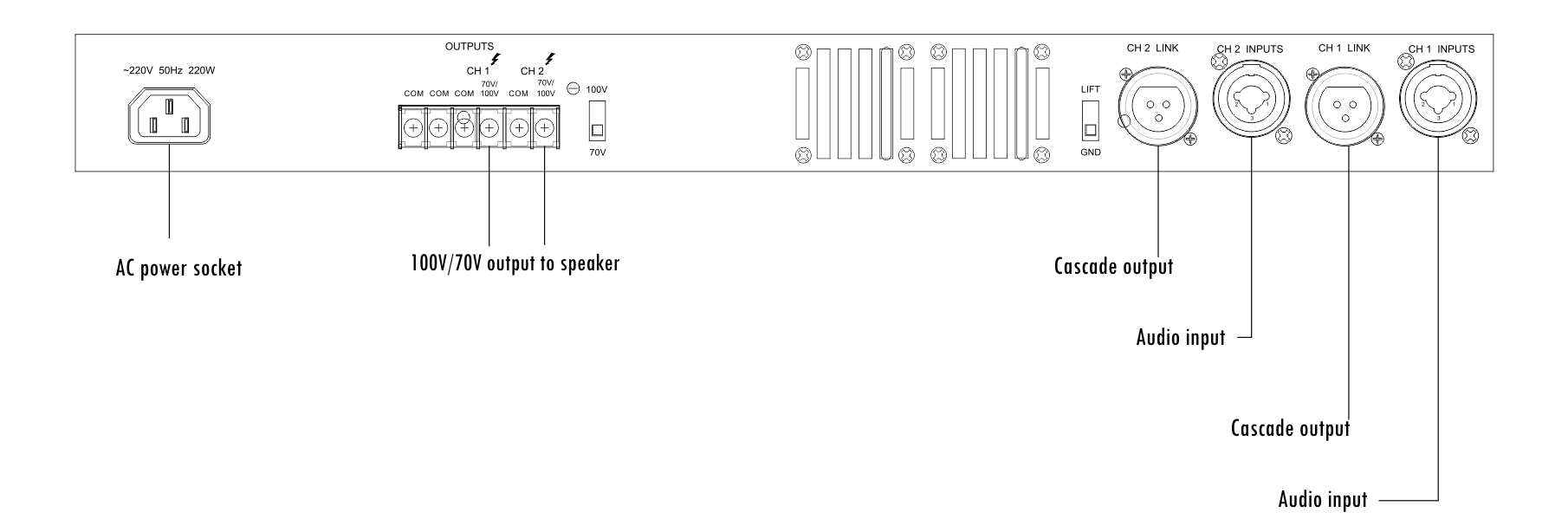

* Two Power output way: 100v ;70v .SpecificationsRear Panel
| Product Model | T-2P120 | T-2P60 |
| Protection | Overheating, overload and short circuit | |
| Heat Dissipation | From front to rear forced cooling, infinite temperature control fan | |
| Channel Crosstalk Attenuation | ||
| Earth Line Float Switch | Signal earth line can be connected on amplifier box or suspending | |
| THD | 1KHz 0.5%, 1/3 output power | |
| SNR | >90dB | |
| Frequency Response | 50Hz~16KHz(+1dB, -3dB) | |
| 775mV/10KΩ,Unbalanced TRS input terminals | ||
| Output Sensitivity & Output Source Impedance | ± 385mV/10KΩ, balanceed XLR | |
| Input Sensitivity & Input Impedance | ± 385mV/10KΩ, balance XLR | |
| Speaker Output | 70V, 100V | |
| RMS | 2x120W | 2x60W |
| Power Supply | ~220-240V 50/60Hz | |
| Power Consumption | 350W | 180W |
| Dimension | 484x255x44mm | |
| Weight | 4.30Kg | 3.8 Kg |
| Material | Black Aluminum panel, (SPCC) Cold Rolled Sheet | |
