Features
* 2 channel mixer of 10 inputs
* Remote paging console T-319 as mic 1 with highest input priority
* Mic 2-4 with VOX selector over inputs 5-10 and phantom power
* All the 10 inputs with mic, line and high pass filtering selector
* Inputs 7-10 either by XLR mic inputs or by dual RCA line inputs
* Dual channel XLR line outputs
* All inputs include inputs1-10, MIC (remote paging console T-319), chime could be selected to have channel1, channel 2 and channel 1+2 outputs.
* Built-in 2/4 tone pre-set chime, remote chime trigger and local trigger on front panel
* Volume controls are provided over chime, MIC1, inputs 2-10, channel 1 and channel 2 masters . Bass and treble tone control are provided for both channel 1 and channel 2.
* Indicators for input 1-10, power and 2 channel level meters
* AC 110 or 230V and DC 24V operation

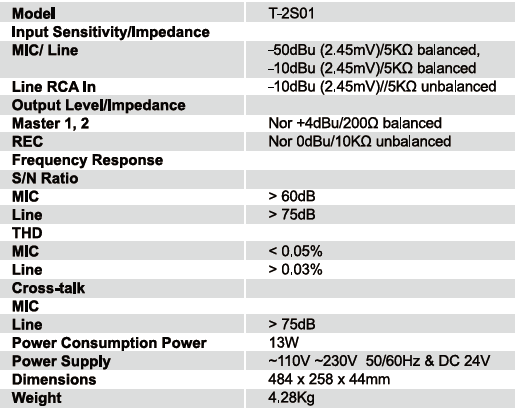

Specifications
